Odyssey FFM- Option 3 - Side Block + LAWS [Full Additions] (1)

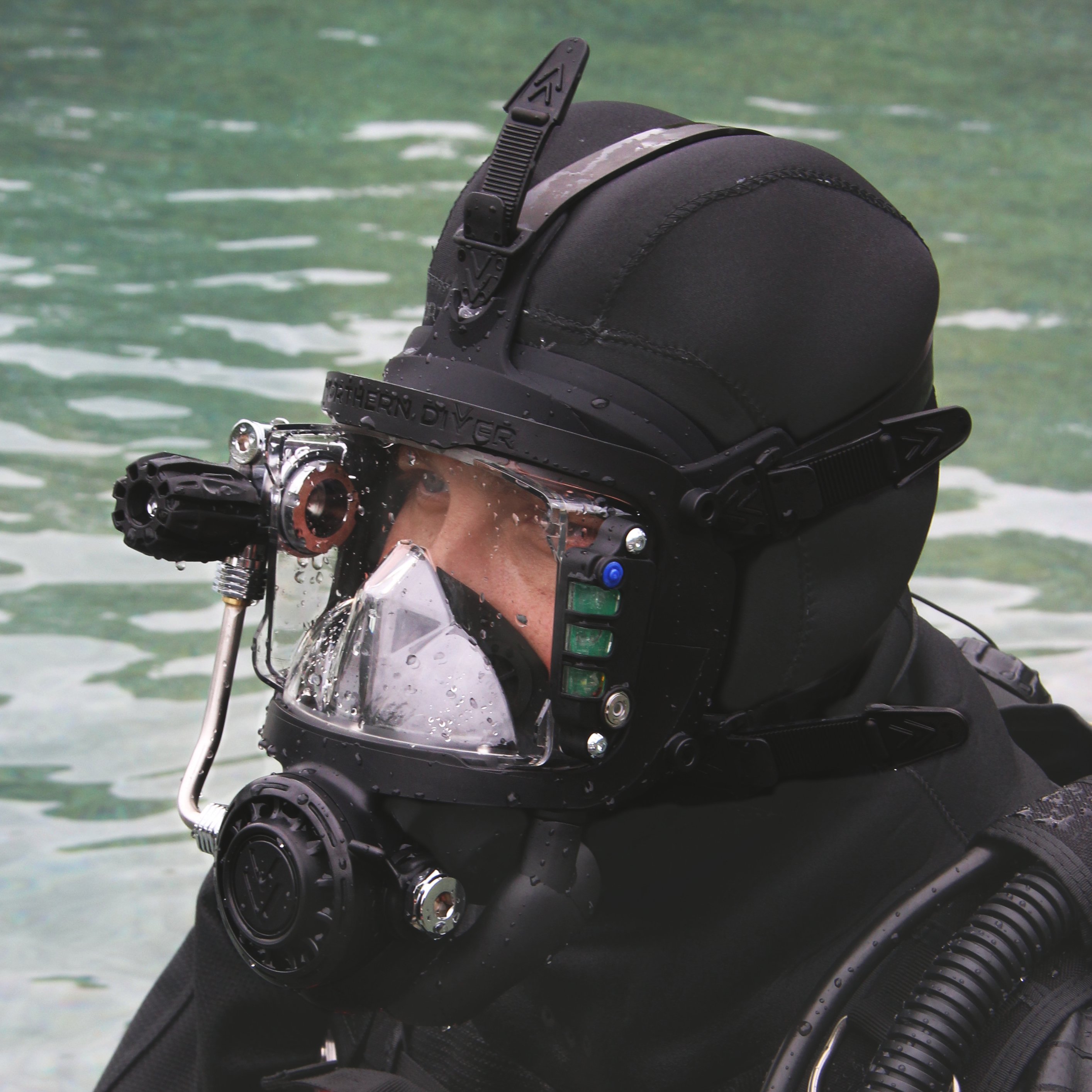

Odyssey FFM- Option 3 - with Side Block + LAWS [Full Additions] - pictured in use at Capernwray (2)

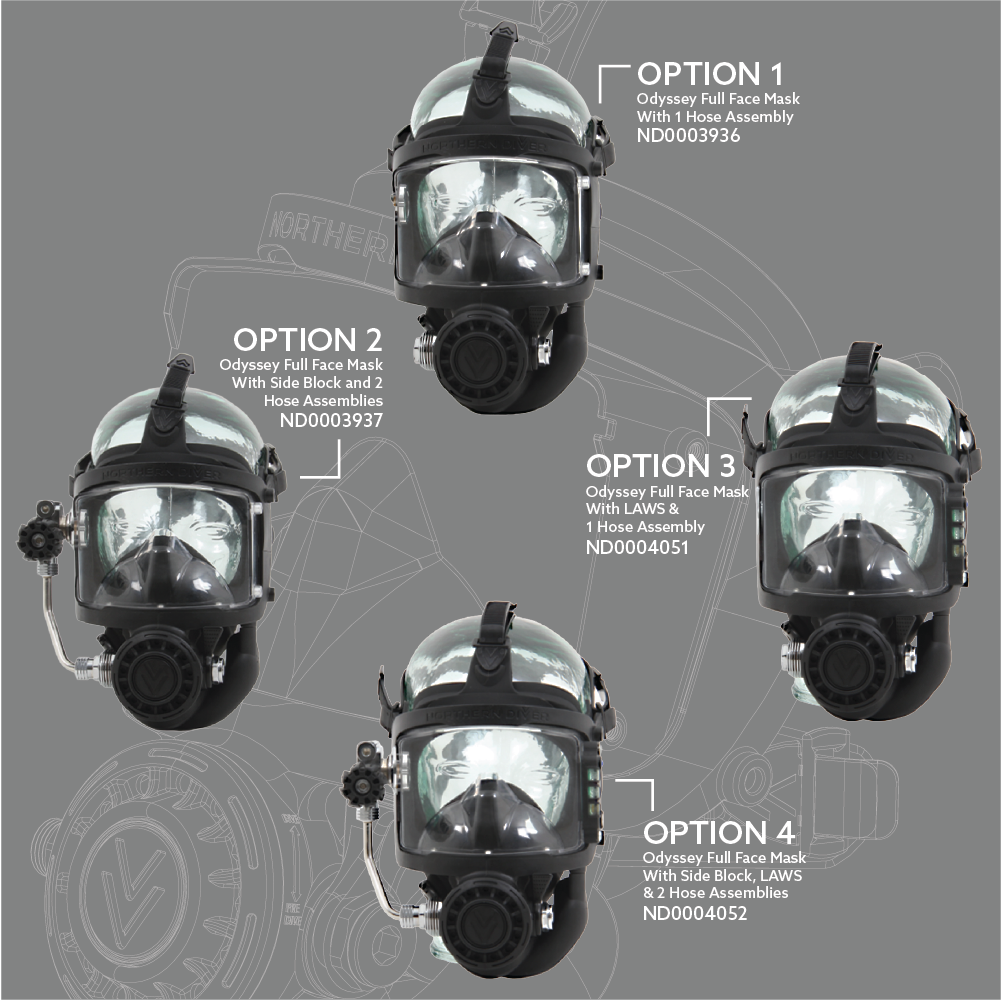

All four variations of the Odyssey Mask configuration (3)

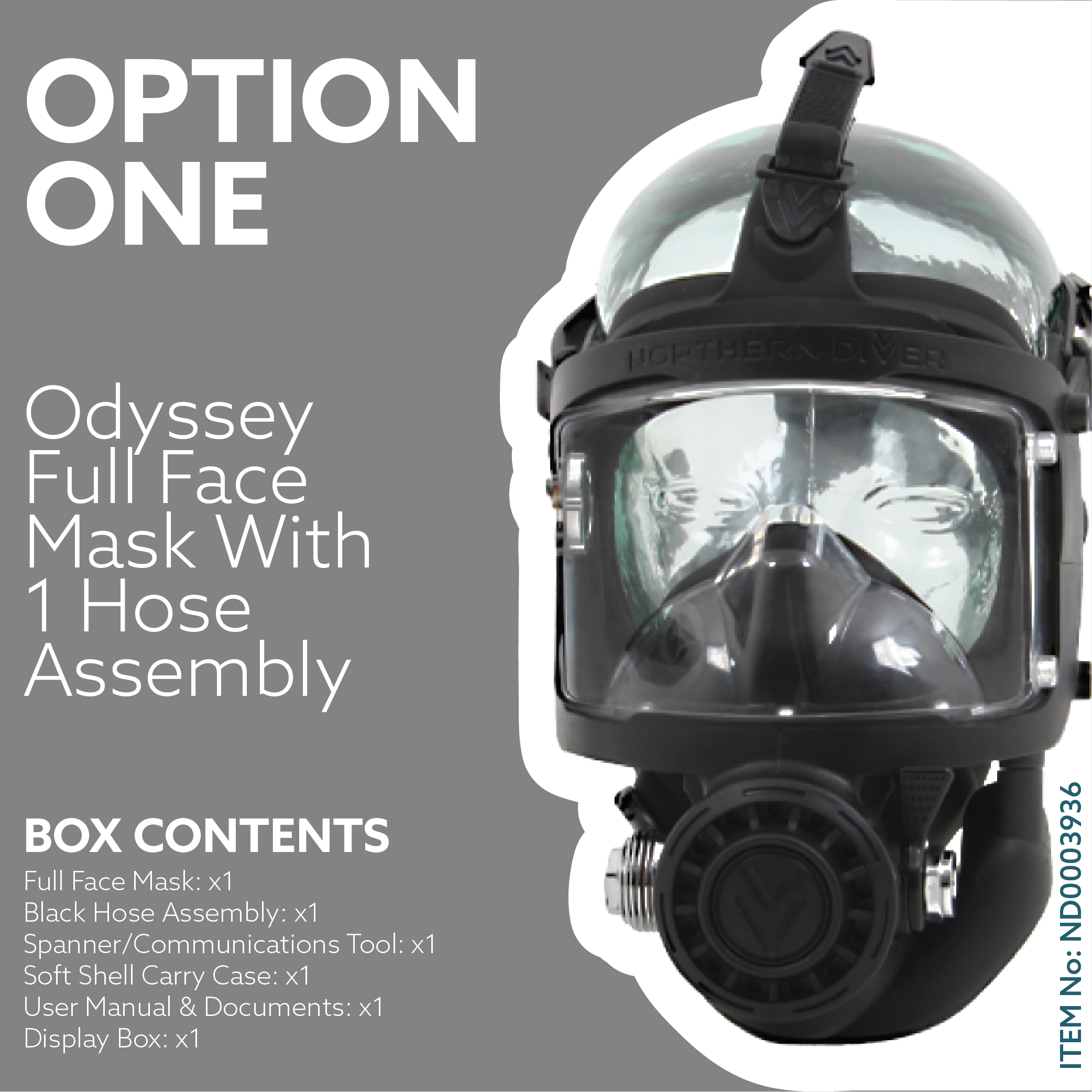

dyssey FFM- Option 1 - Face Mask [No Accessories] - Left View (5)

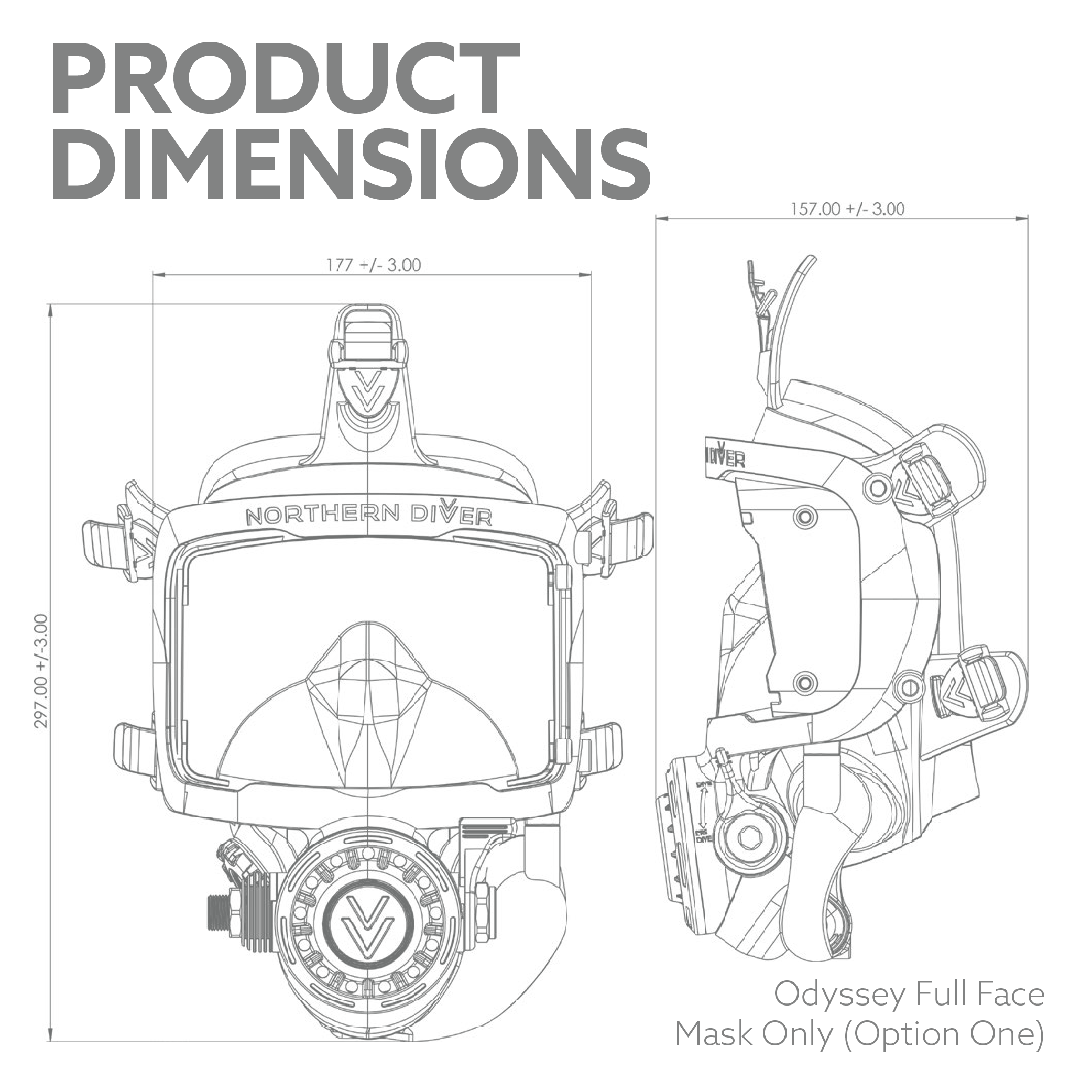

Odyssey FFM - CAD Drawing with Dimensions (Mask Only)

Odyssey FFM- Option 3 - Side Block + LAWS [Full Additions] - Right View of Side Block (7)

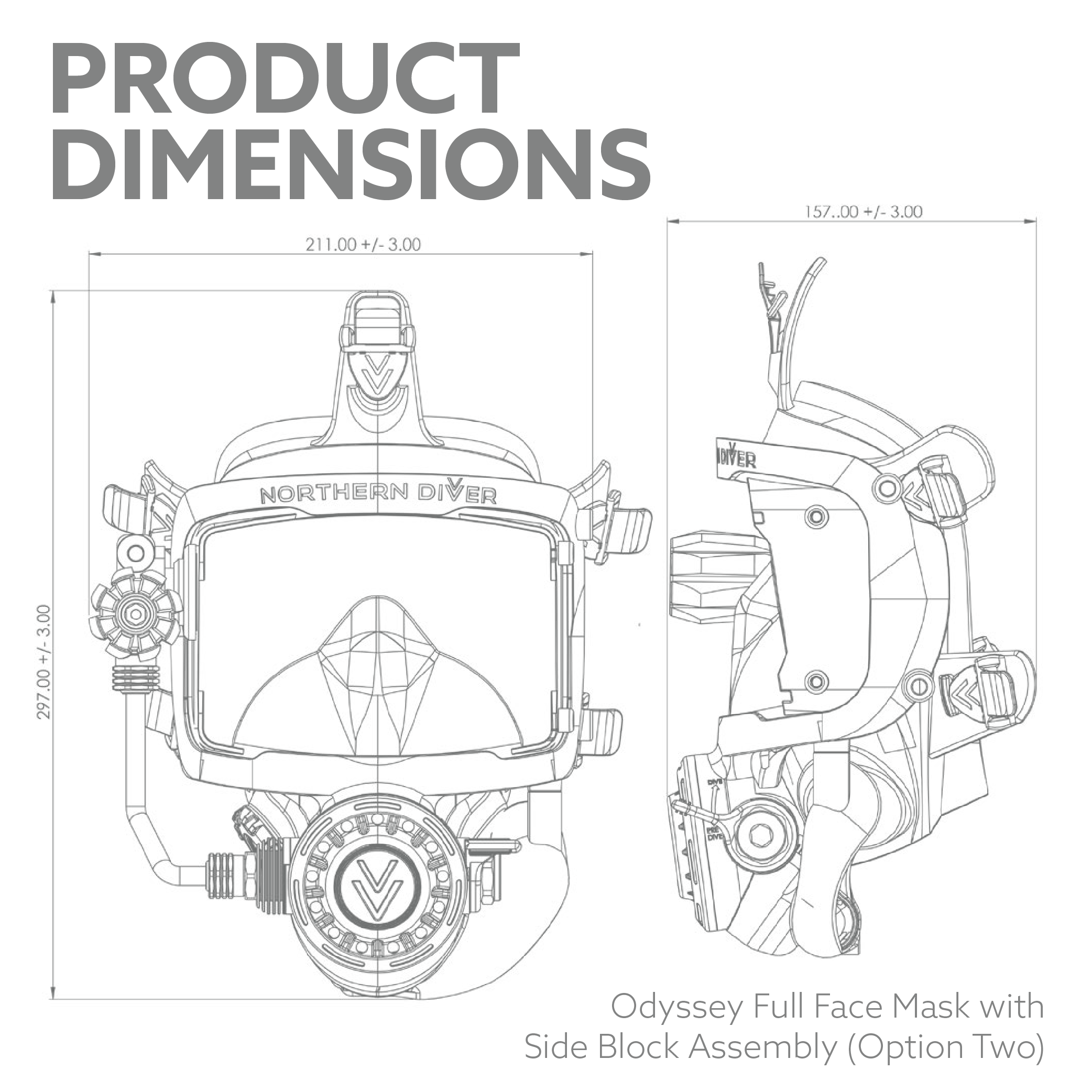

Odyssey FFM - CAD Drawing with Dimensions (including Side Block Assembly)

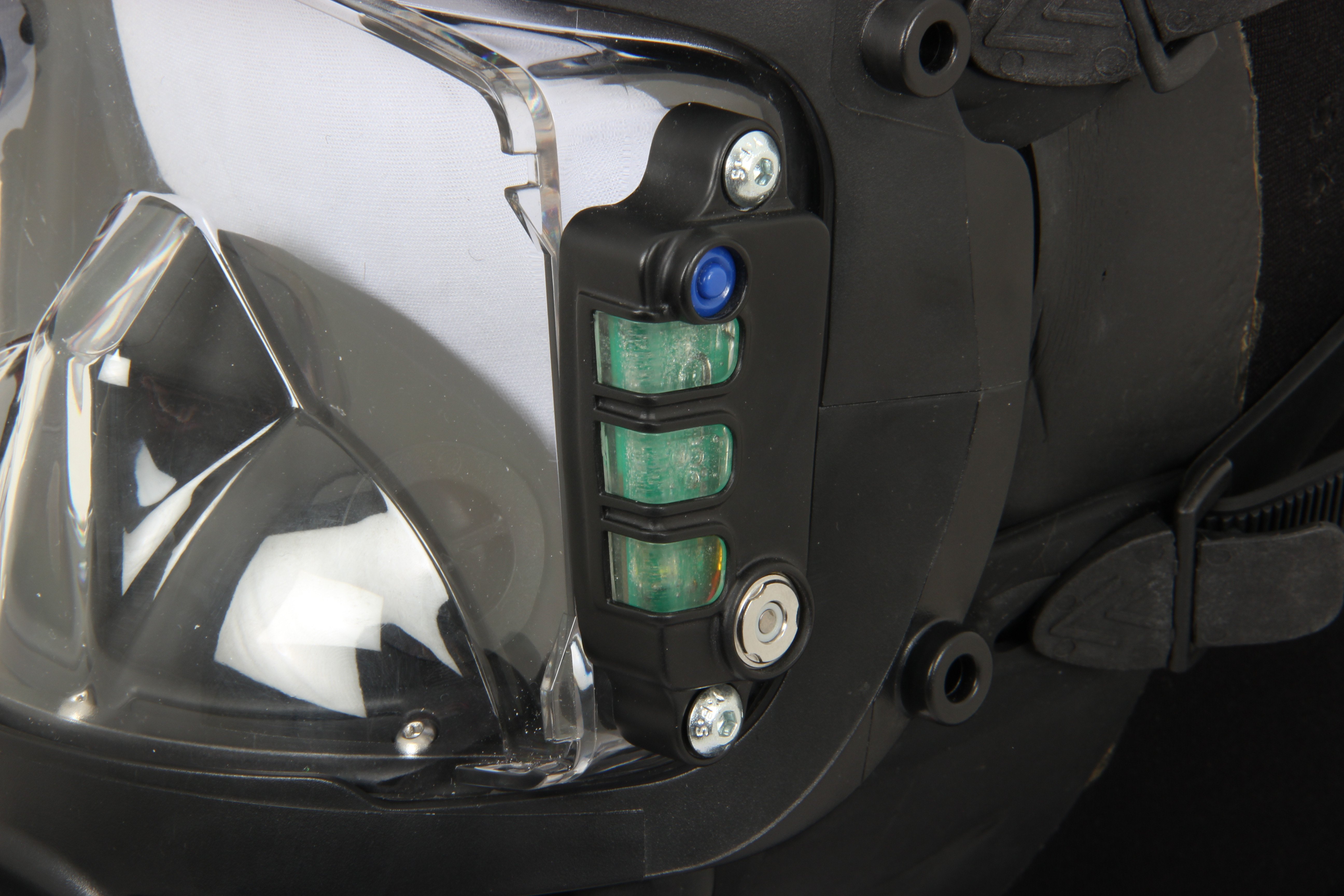

LAWS [Optional Addition] - LED block attached to mask

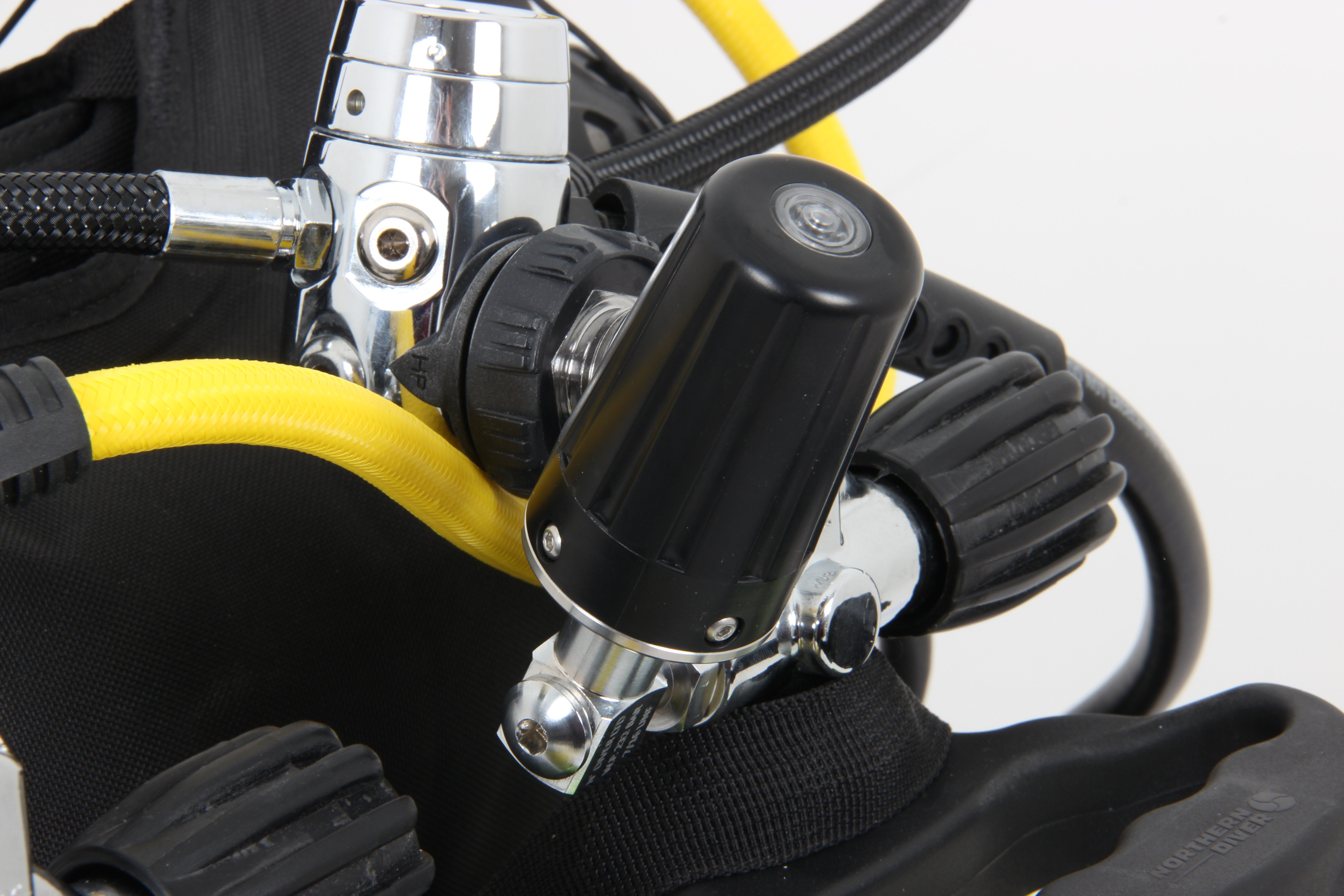

LAWS [Optional Addition] - Pressure sensor attached to first stage regulator

Odyssey Full Face Mask

Rating

£650.00 inc VAT

Pre Order

Integrated High-Performance Second-Stage Regulator – Delivers consistent airflow and low-resistance breathing.
Heat Exchanger for Freezing Resistance – Prevents freezing in extreme cold-water conditions.
Low-Volume Oral-Nasal Cavity – Minimises CO₂ build-up, ensuring effortless breathing.
Universal Fit with Double Skirt Seal – Secure, comfortable fit across various face shapes, including female divers.
Single-Sided Exhaust System – Directs bubbles away from the visor, improving visibility.
Venturi Lever for Dive & Pre-Dive Settings – Adjust airflow instantly for optimised breathing.
Stainless Steel Breathing Tubes – Provides enhanced durability and corrosion resistance.
Customisable Nose Block – Aids in easy equalisation for maximum comfort.

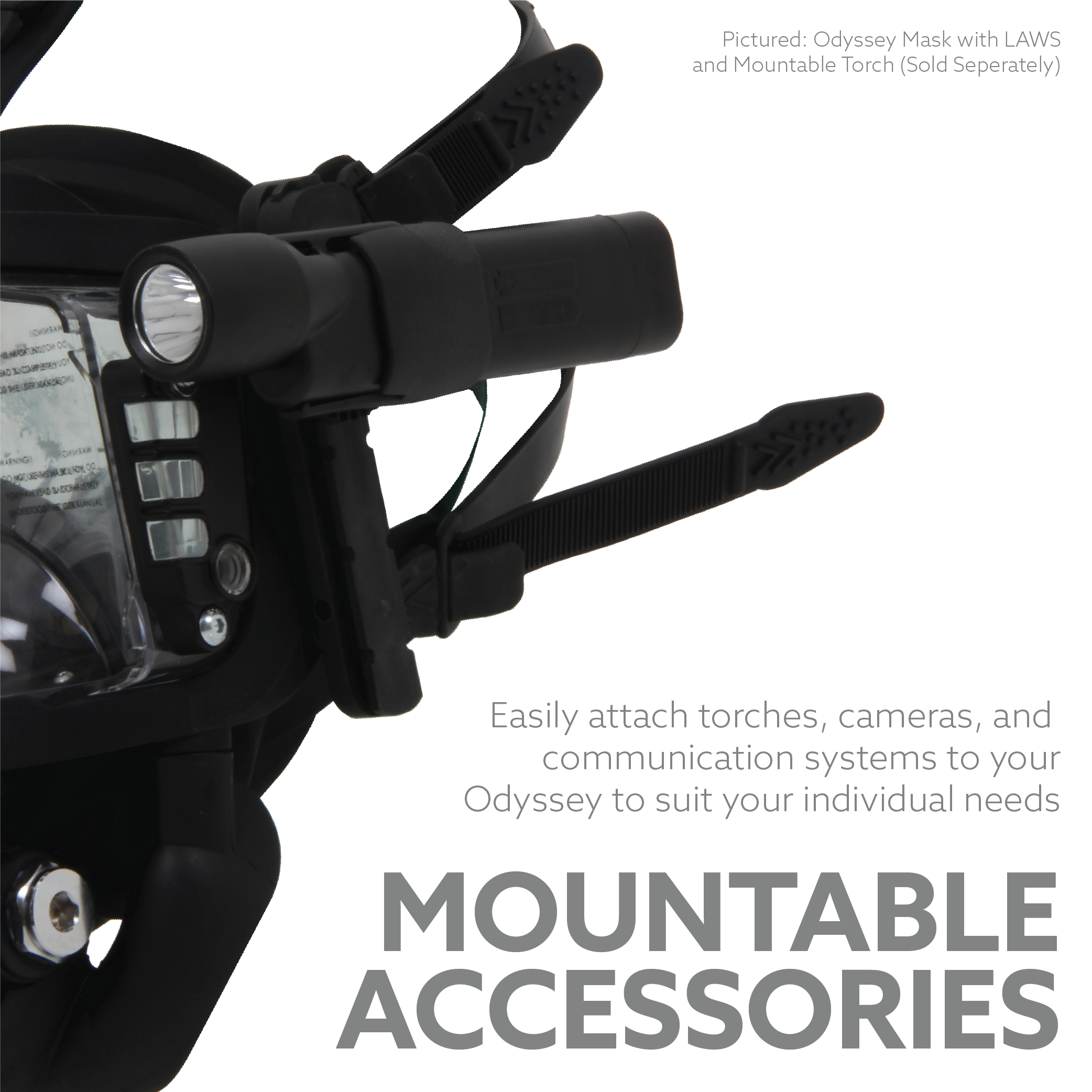

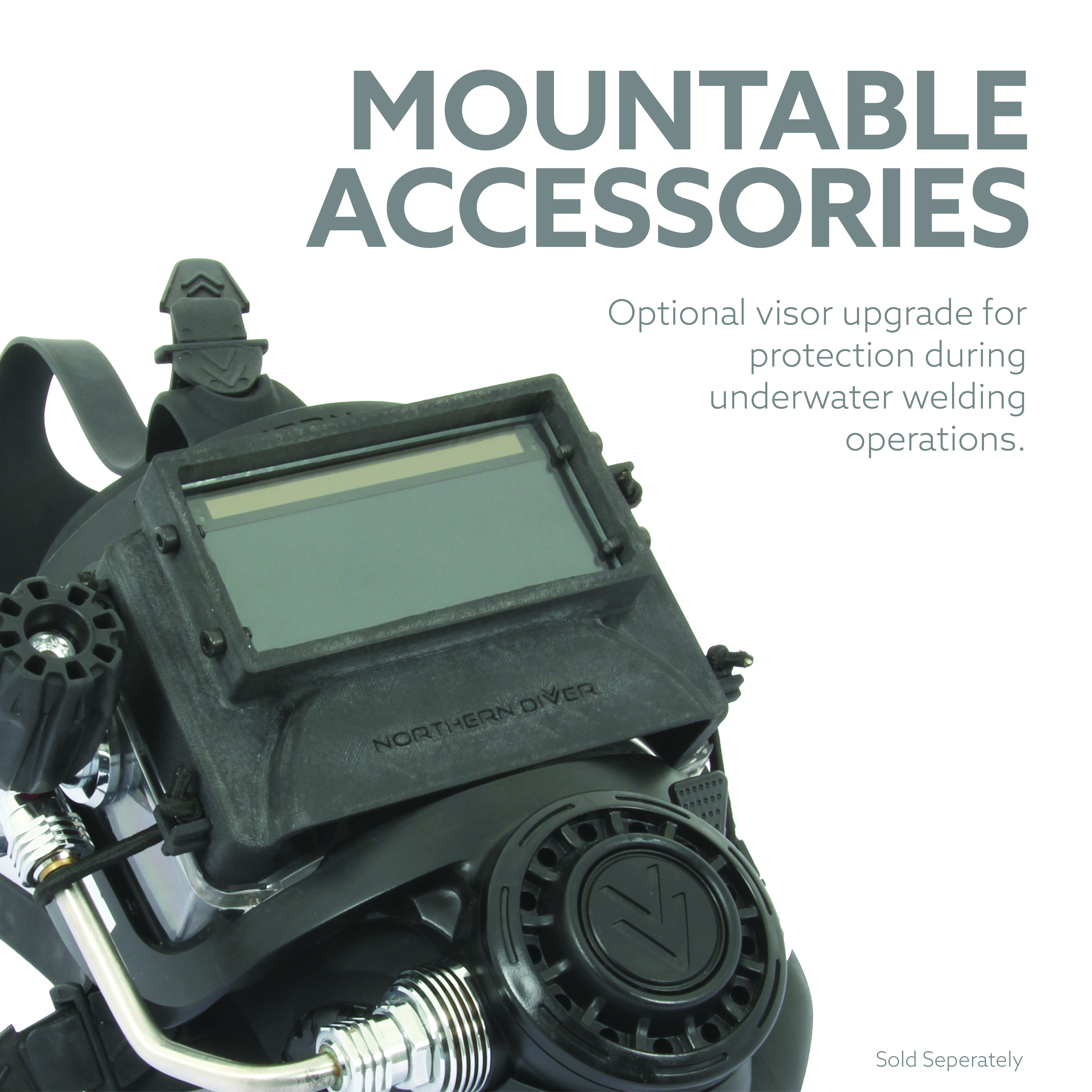

Mounting Holes for Accessories – Easily attach torches, cameras, and communication systems.

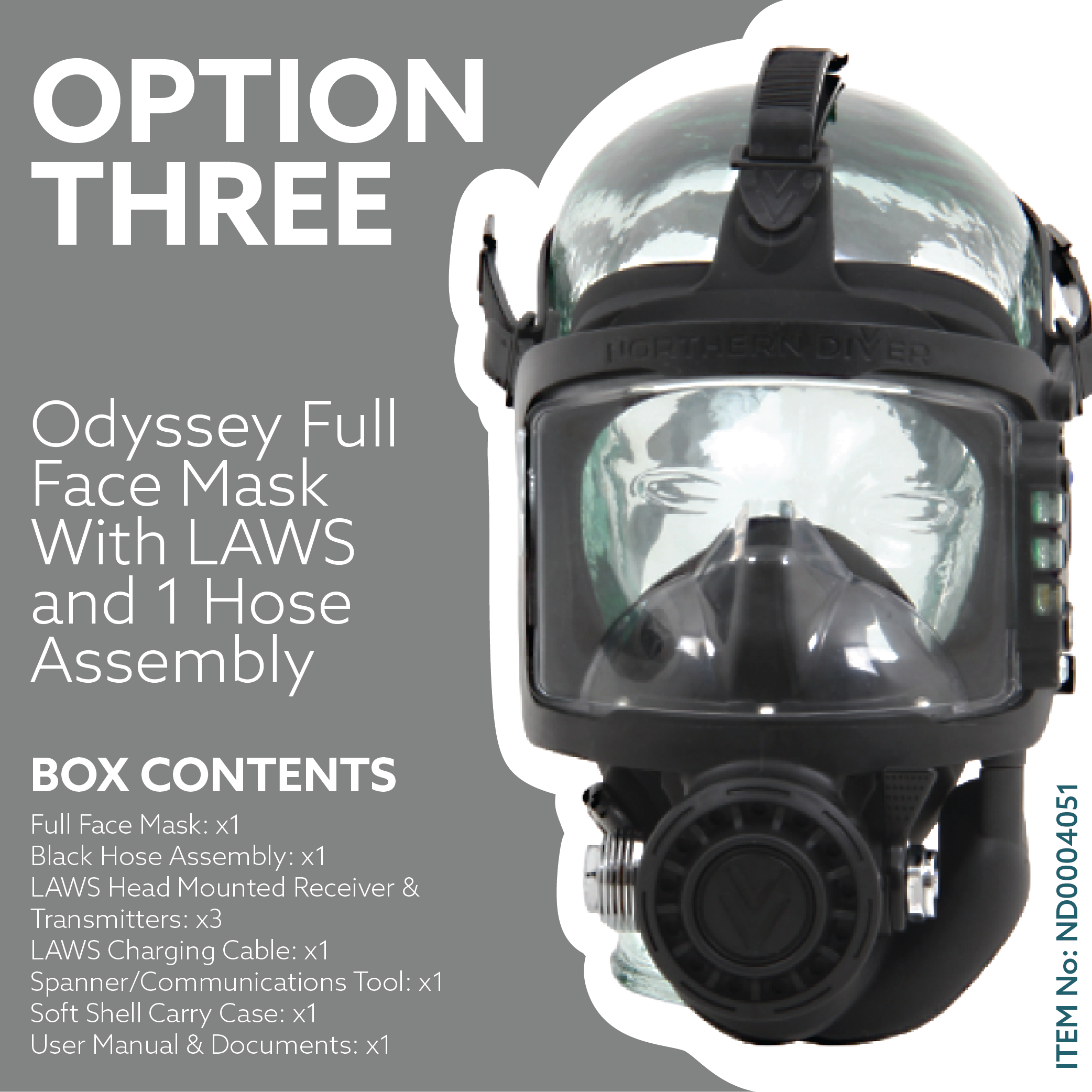

Low Air Warning System (LAWS) [Optional] – Wireless visual alerts for real-time air monitoring.
Side Block (Switch Block) [Optional] - Enables access to simultaneous air supply from bailout and main cylinders and ease of management in critical situations

Odyssey option

Quantity

Designed specifically for military, commercial, and rescue divers, the Odyssey Full Face Mask delivers unmatched safety, reliability, and comfort in the most extreme underwater environments. The Odyssey is rigorously tested to ensure peak performance down to 50m in cold water (4°C ± 2°C).

Manufactured in the UK and certified to EN250:2014
⎯⎯⎯⎯⎯⎯⎯⎯⎯⎯⎯⎯⎯⎯⎯⎯⎯⎯⎯⎯⎯⎯⎯⎯⎯⎯⎯⎯⎯⎯⎯⎯⎯⎯⎯⎯⎯⎯

IMPORTANT ORDERS & DELIVERIES NOTICE:

• The Odyssey Full Face Mask is set to pre-orders. This is to ensure bespoke building of this mask to your specifications.

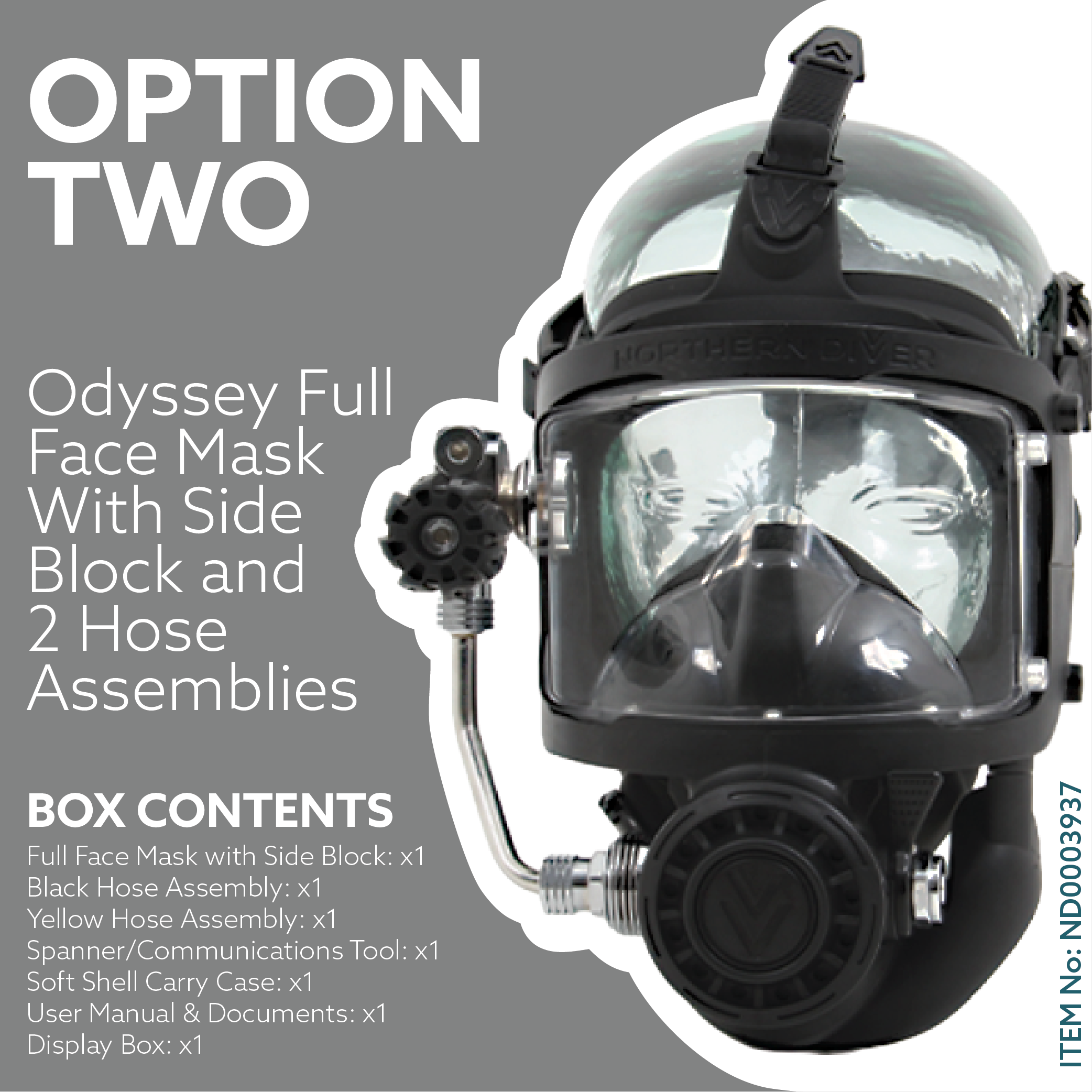

• On orders of Option 1 (no accessories) or Option 2 (with side block) we aim to get your Odyssey to you within 14 days (2 weeks).

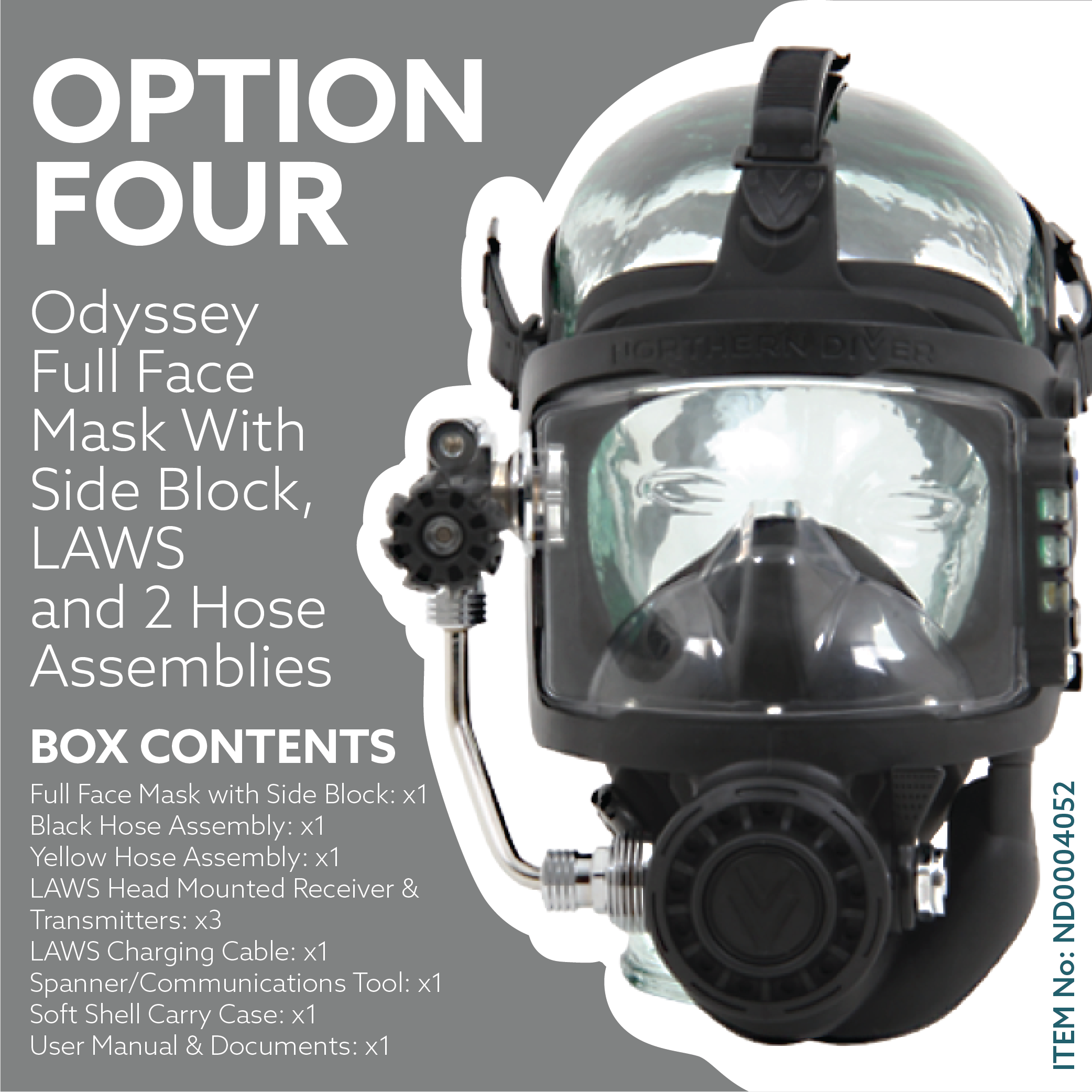

• On orders of Option 3 (side block + LAWS) please be advised orders will take at least 4 months to get to you due to LAWS supply chain and technology assembly times.
• If you make an order of more than 5 Odyssey FFMs (Opt. 1 or 2) please allow extra time for your order to be fulfilled.

Should you have any questions or enquiries about any of these notices, please do get in touch with Maddie:
• Phone: +44 (0)1257 25 69 30
• Email: [email protected]
⎯⎯⎯⎯⎯⎯⎯⎯⎯⎯⎯⎯⎯⎯⎯⎯⎯⎯⎯⎯⎯⎯⎯⎯⎯⎯⎯⎯⎯⎯⎯⎯⎯⎯⎯⎯⎯⎯

𝗢𝗗𝗬𝗦𝗦𝗘𝗬 𝗙𝗨𝗟𝗟 𝗙𝗔𝗖𝗘 𝗠𝗔𝗦𝗞 - 𝗗𝗘𝗧𝗔𝗜𝗟𝗦

𝗘𝗻𝗴𝗶𝗻𝗲𝗲𝗿𝗲𝗱 𝗳𝗼𝗿 𝗨𝗹𝘁𝗶𝗺𝗮𝘁𝗲 𝗣𝗿𝗼𝘁𝗲𝗰𝘁𝗶𝗼𝗻 𝗶𝗻 𝗧𝗼𝘂𝗴𝗵 𝗮𝗻𝗱 𝗖𝗼𝗹𝗱-𝗪𝗮𝘁𝗲𝗿 𝗗𝗶𝘃𝗲 𝗖𝗼𝗻𝗱𝗶𝘁𝗶𝗼𝗻𝘀

➤ Advanced Breathing System

The Odyssey features an integrated high-performance second-stage regulator built directly into the mask frame. This low-profile design reduces drag, minimises CO₂ build-up, and ensures effortless breathing even in the harshest conditions. With stainless-steel breathing tubes for enhanced durability, it’s built for mission-critical reliability time after time, dive after dive.

➤ Uncompromised Safety & Visibility

• CE-certified single system – No third-party integrations, ensuring seamless performance.

• Universal fit with enhanced sealing – Secure, comfortable fit across different face shapes.

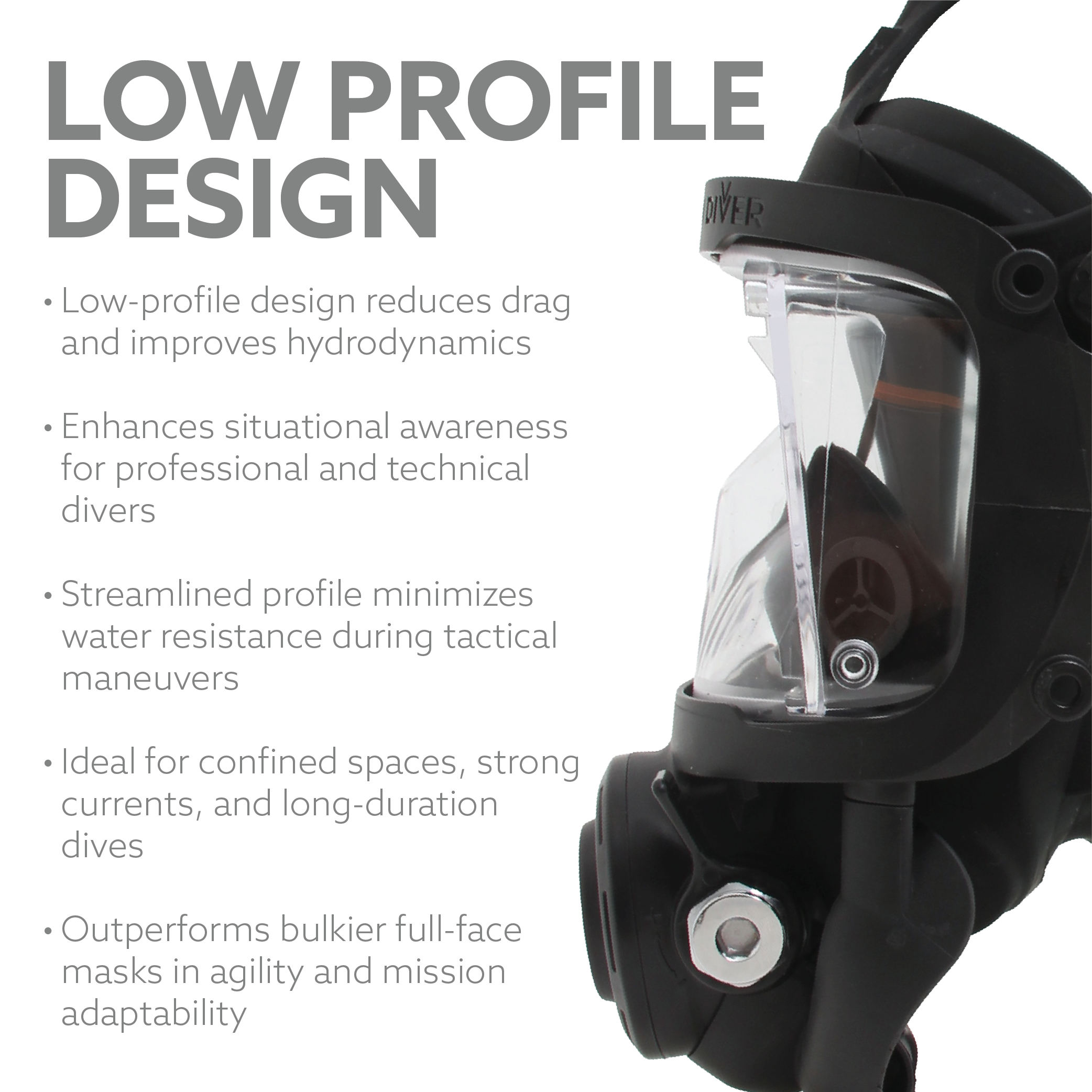

• Low-profile design – Optimised for wide peripheral vision, even with mounted equipment.

➤ Extensive and Adaptable Features (Optional Additions)

• Integrated Side Block – Enables simultaneous use of main and bailout cylinders, ensuring a fail-safe gas supply in emergency situations.

• Low Air Warning System (LAWS) – Provides instant, wireless visual alerts for critical air levels.

➤ Built for Extreme Environments

Tested beyond limits, Odyssey withstands cold-water operations, challenging visibility, and high-pressure diving conditions. Featuring an anti-free flow mechanism, heat exchanger system, and reinforced impact-resistant polycarbonate lens, it ensures clear vision and optimal performance at all times.

🔗 Breathe Easy. The Odyssey Full Face Mask is here!

⎯⎯⎯⎯⎯⎯⎯⎯⎯⎯⎯⎯⎯⎯⎯⎯⎯⎯⎯⎯⎯⎯⎯⎯⎯⎯⎯⎯⎯⎯⎯⎯⎯⎯⎯⎯⎯⎯

𝗧𝗘𝗖𝗛𝗡𝗜𝗖𝗔𝗟 𝗦𝗣𝗘𝗖𝗜𝗙𝗜𝗖𝗔𝗧𝗜𝗢𝗡𝗦

➤ Mask Construction

• Frame Material: Reinforced, high-impact rigid nylon frame for strength and flexibility

• Lens Material: High-grade, impact-resistant polycarbonate

• Skirt Material: Soft, hypoallergenic silicone for a secure, leak-proof seal.
Tested on a variety of head shapes to ensure effective fit in any gender and size (± 5-95 percentile of people)

• Weight: 1.4kg (3.1lbs) with side block, 1.0kg (2.2lbs) without

➤ Regulator & Breathing System

• Second Stage Type: Pneumatically balanced

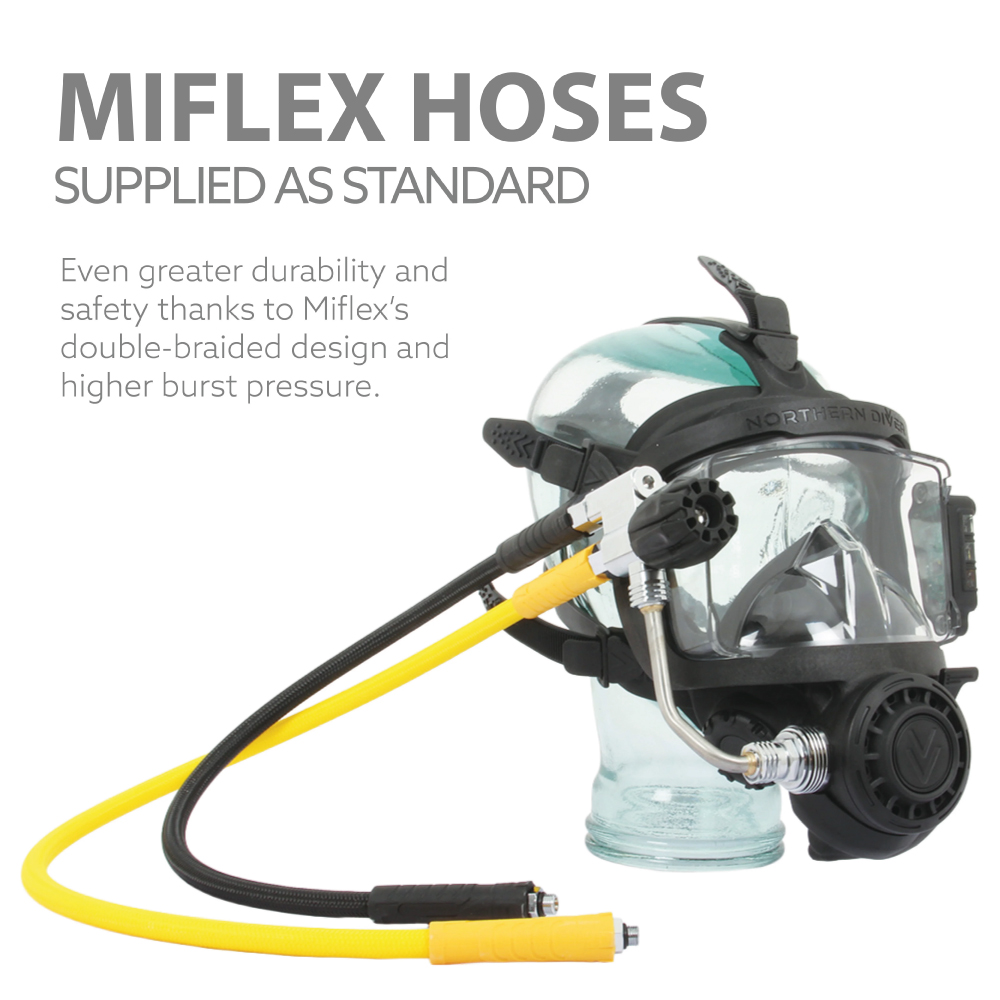

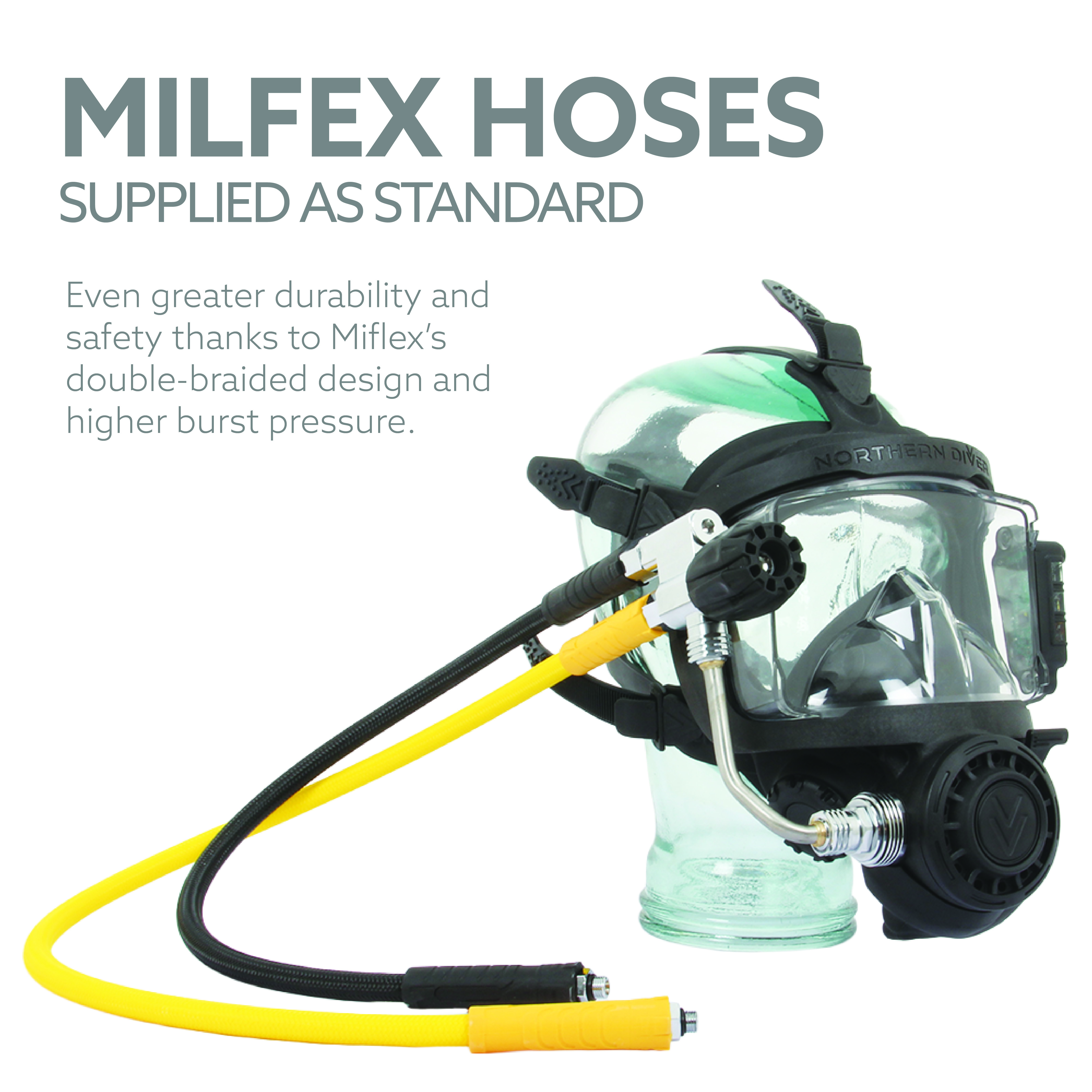

• Hose Type: Two braided flexi hoses

• Breathing Performance: 1.0 joules/litre @50M, 4°C water, BPM 62.5 l/m

• Pre-Dive / Dive Lever: Ergonomically designed for precise airflow control

• Heat Exchanger: Twin heat system for cold-water performance

⎯⎯⎯⎯⎯⎯⎯⎯⎯⎯⎯⎯⎯⎯⎯⎯⎯⎯⎯⎯⎯⎯⎯⎯⎯⎯⎯⎯⎯⎯⎯⎯⎯⎯⎯⎯⎯⎯

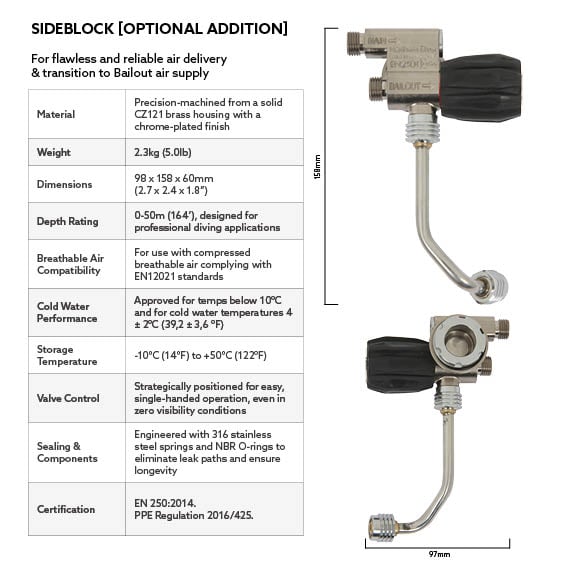

➤ Side Block [Optional Addition]

• Material: Precision-machined CZ121 brass housing with chrome-plated finish

• Valve Control: Single-handed operation, even in zero visibility

• Dimensions: 68.5 × 60 × 44.5mm

• Weight: 2.3kg (5.0lbs)

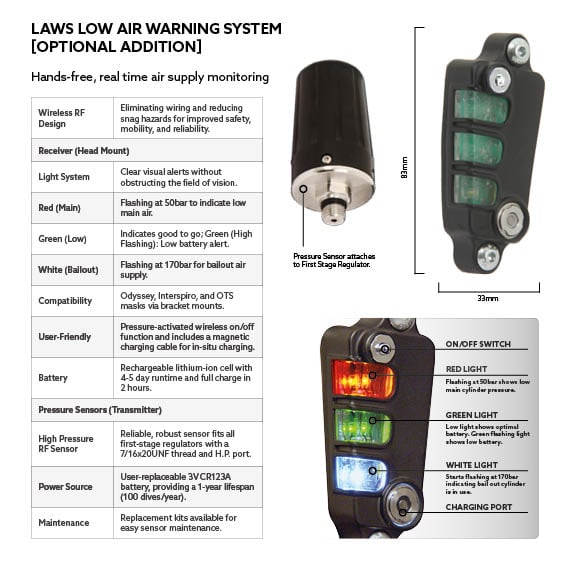

➤ Low Air Warning System (LAWS) [Optional Addition]

• Wireless RF Design: Eliminates wiring and reduces snag hazards

• Receiver Mounting: Designed for clear visual alerts without obstructing vision

• Battery: Rechargeable lithium-ion cell, 4-5 day runtime, full charge in 2 hours

• Transmitter Compatibility: Fits all first-stage regulators with 7/16x20UNF thread

⎯⎯⎯⎯⎯⎯⎯⎯⎯⎯⎯⎯⎯⎯⎯⎯⎯⎯⎯⎯⎯⎯⎯⎯⎯⎯⎯⎯⎯⎯⎯⎯⎯⎯⎯⎯⎯⎯
➤ Certifications & Environmental Performance

• Certification: CE marked to EN250:2014 & PPE Regulation 2016/425

• Depth Rating: 0-50 metres / 164 ft

• Temperature Rating: Approved for temperatures below 10°C and cold water 4 ± 2°C (39.2 ± 3.6°F)

• Storage Temperature: -10°C (14°F) to +50°C (122°F)

There are currently no reviews for this product

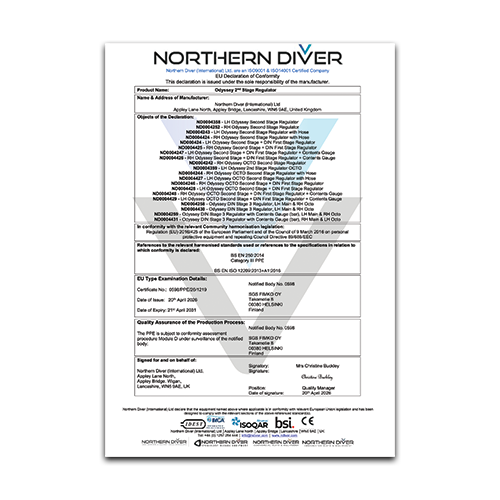

Odyssey Declaration of Conformity
