INST 12 - Compact Contents and Depth Gauge

Rating

0 out of 5 stars

Product Information

£86.00 inc VAT

Low in stock

Key Features

  • 400 bar submersible pressure gauge
  • 70 metre depth gauge with maximum depth indicator
  • Precisions Italian-made manufactured construction
  • One-piece nickel-plated brass gauge body
  • Copper beryllium Bourdon tube pressure mechanism
  • Easy-to-read luminescent dials
  • Polycarbonate impact-resistant gauge windows
  • Protective rubber housing for enhanced durability
  • EN250:2014 and EU 2016/425 certified

Description

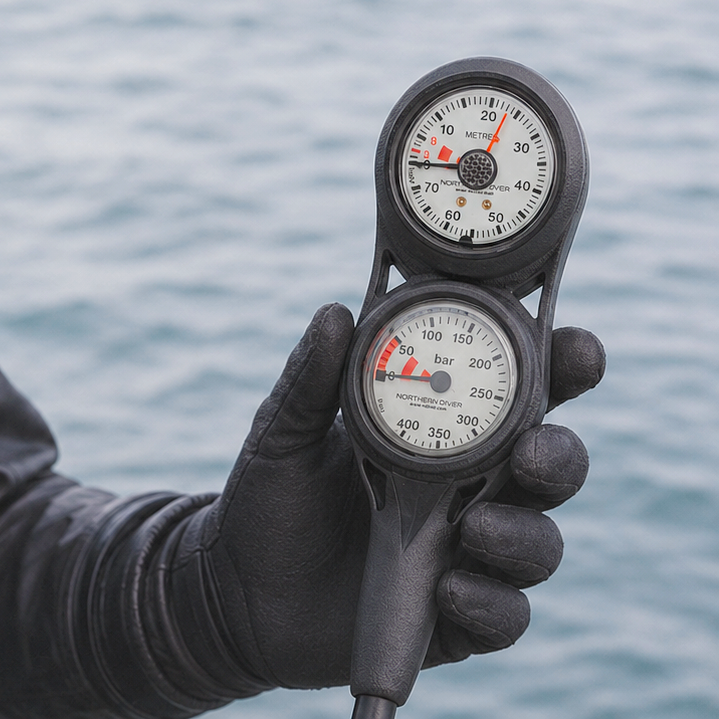

Northern Diver INST-12 Compact Contents & Depth Gauge

The Northern Diver INST-12 Compact Contents & Depth Gauge is a durable, high-quality two-gauge console designed to provide reliable monitoring of both cylinder pressure and dive depth throughout every dive. This compact console combines a 400 bar submersible pressure gauge (SPG) with a maximum depth indicator (MDI), making it an essential instrument for recreational, commercial and military divers.

Built with a one-piece nickel-plated brass gauge body and a copper beryllium Bourdon tube mechanism, the INST-12 delivers dependable accuracy in demanding underwater environments. The easy-to-read luminescent dials improve visibility in low-light conditions, while impact-resistant polycarbonate lenses and a rugged protective rubber housing help withstand the rigours of regular diving operations.

Supplied with an 81cm (32") high-pressure thermoplastic hose, the compact design keeps your equipment streamlined without compromising readability. The depth gauge measures to 70 metres and includes a maximum depth indicator, while the pressure gauge displays cylinder pressure up to 400 bar with a clearly marked reserve zone below 50 bar.

FEATURES
  • Compact two-gauge dive console
  • 400 bar submersible pressure gauge (SPG)
  • 70 metre maximum depth indicator (MDI)
  • Precision Italian-manufactured instrument
  • Nickel-plated brass gauge body
  • Copper beryllium Bourdon tube mechanism
  • Luminescent gauge faces for improved visibility
  • Impact-resistant polycarbonate lenses
  • Protective rubber console boot
  • 81cm (32") high-pressure thermoplastic hose

SPECIFICATIONS

Console Type:
Contents & Depth Gauge
Pressure Gauge Range: 0–400 bar
Reserve Zone: 50–0 bar (red)
Depth Gauge Range: 0–70 metres

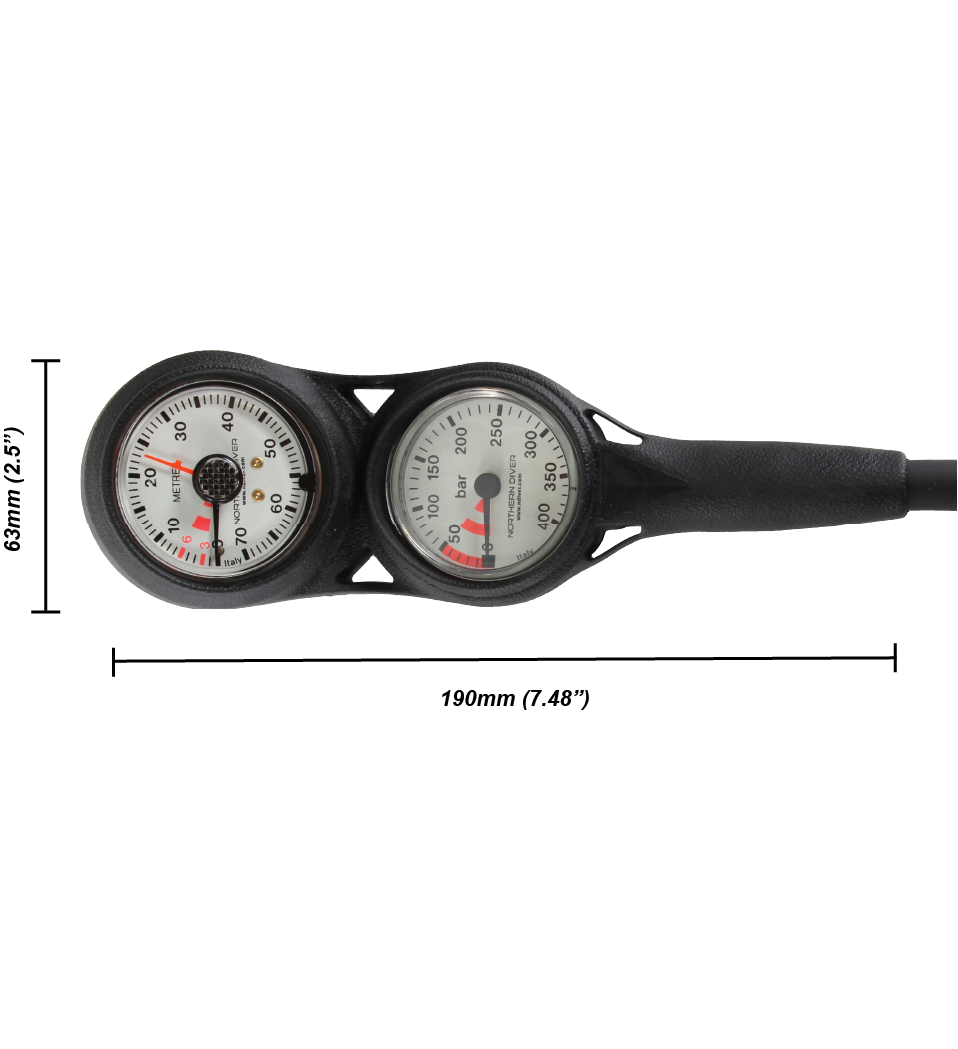

Face Diameter: 42mm
Gauge Diameter: 50mm
Hose Length: 81cm (32")
Weight: 389g
Gauge Body: Nickel-plated brass
Pressure Mechanism: Copper beryllium Bourdon tube
Lens Material: Polycarbonate
Certification: EN250:2014 & Regulation (EU) 2016/425

IDEAL FOR
  • Military diving operations
  • Commercial diving
  • Public safety diving
  • Professional dive teams
  • Recreational scuba diving
  • Dive schools and centres
  • Technical diving
  • General underwater operations

Reviews

There are currently no reviews for this product

Downloads

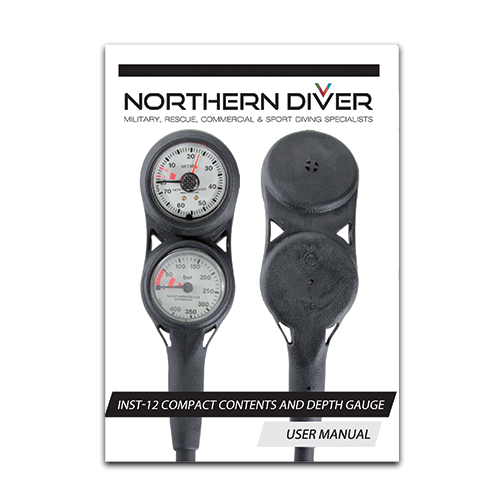

INST-12 Compact Contents Gauge User Manual

INST-12 Compact Contents Gauge User Manual

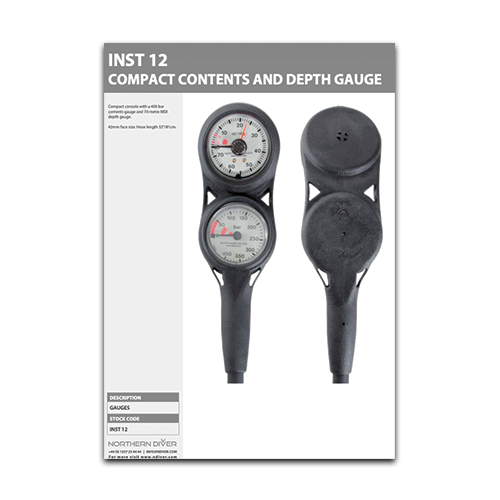

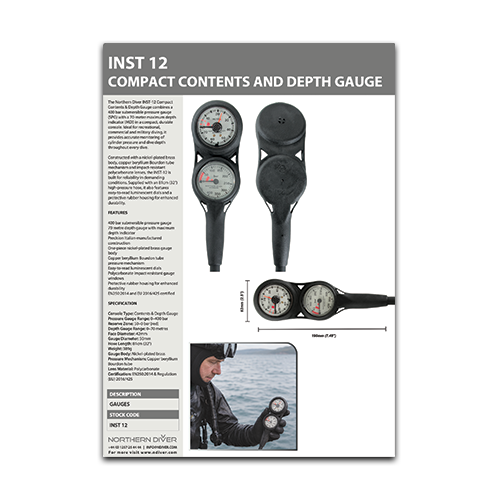

INST-12 Gauge Datasheet

INST-12 Gauge Datasheet
